408/508/308S/2008 Car Video Interface For Peugeot NAC System Camera INPUTS
What is Car Video Interface function including?
Camera interface allows you to connect with 1 front camera, 1 rear camera, or DVR video device, it has dynamic parking guidelines to assist parking, overlay car's factory parking sensor.
What is Car Video Interface?
Camera interface is a decorder making to dedicated to fit with car factory screen, while decoders do serve the purpose of integrating IP cameras into a digital video recorder-based system, they also allow older monitors to show video footage. Which can help you to see very clearly the surrouding via front camera and rear camera.
Car camera multimedia video interface allows to connect two cameras to car's factory LCD monitor, it dedicated to design for AUDI NON MMI A4 A5 Q5 Cocert Symphony system, including the dedicated fit LVDS cable, power CANBUS cable, camera RCA connector, as well as a main unit. Everything design is for no harmness installation, just plug and play. After installation, you can see the camera view via car's factory screen to assist parking with dynamaic parking guidelines moving with the steering wheel. Which is neccessary and safe for each car.
Car Video Interface Functions
| 1. Firmware can be updated by micro SD card |
| 2. Plug&Play interface and no harmness to any cable |
| 3. LVDS output support 800x480, 400x24, or 1024x480 screen |
| 4. Dynamic Parking Guidelines with original Radar-detection image |
| 5. Front camera (DVR optional) &Rear camera inputs and auto-switch |
| 6. Comptible Camera Format: NTSC Format |
| 7. Overlay car's factory parking sensors |
| 8. Support Camera input, DVR &front camera |
| 9. Compatible with Peugeot NAC 2018-2019 (800x480 screen) |
| 10. Installation guide provided |

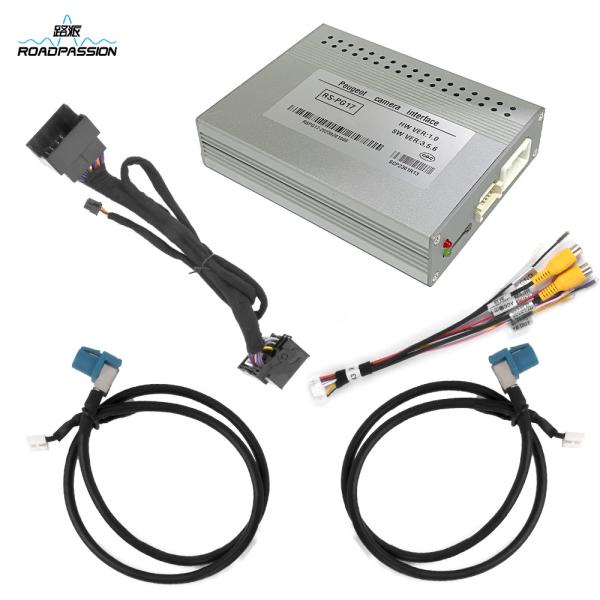

Car Video Interface Package Contents:
1 * Interface main unit
1 * LVDS cable
1 * Power cable
1 * Camera inputs harness
1 * Rear handle camera (optional)
1 * Camera extensive cable (opitonal)
1 * Camera power & GND wire
Car Video Interface compatible car model
For Peugeot NAC 2018-2019 (800x480 screen)
Car Video Interface Parameter
| Operation voltage | 7V – 25V |
| Stand-by power drain | <10mA |
| Video input | 0.7V - 1V |
| Video input formats | NTSC |
| RGB-video amplitude | 0.7V with 75 Ohm impedance |
| Temperature range | -40°C to +85°C |
| Dimensions video-box | 113×22×92 mm (W×H×D) |
| Dimensions CAN-box | 73×22×30 mm (W×H×D) |
